Pipes/Profiles Scrap Grinders


	Request Information

Standard models are available with built-in Chute for feeding of long scrap of PVC/HDPE pipes & extruded profiles. Standard models available for pipes upto 200mm or even more, to suit your requirements. Click on the thumbnails below for a detailed view.


Standard Model Plastic Scrap Grinder (Granulator)

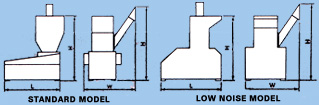

Standard Grinders Model Nos.	Machine Size (LWH) in mm	Low Noise Grinders Model Nos. in mm	Machine Size (LWH) in mm	Feed Opening in mm	Motor (HP)	Size of OD (mm) up to	Thickness (mm) up to	*Output upto Kgs/hr	Screen Size Holes in mm
GI-200/S/P/3	9008001575	GI-200/LN/P/3	10508001575	200	3	32	1.8	30	8.5
GI-300/S/P/7.5	145010002050	GI-300/LN/P/7.5	160010002050	300	7.5	125	3.4	60	8.5
GI-480/S/P/10	155012252150	GI-480/LN/P/10	170012252150	480	10	140	5.5	120	8.5/10
GI-540/S/P/15	170013502250	GI-540/LN/P/15	190013502250	540	15	160	7	150	8.5/10
GI-600/S/P/20	172515002400	GI-600/LN/P/20	195015802400	600	20	180	10	250	8.5/10/12
GI-760/S/P/25	178019002470	GI-760/LN/P/25	200019002470	760	25	200	15	350	8.5/10/12


While choosing the model, please select the maximum OD pipe you manufacture and for small dia pipes, we can provide adopters which could be fitted in the existing chute at extra cost. We can also offer grinders for bigger dia & thickness as per your requirements. *Average output is given, it depends on type of materials, screen holes size & specific conditions.
