Suitable o\for grinding of HIPS, PVC,
PP. PET, Thermoforming Sheet Scrap. Click on the thumbnails below for
a detailed view.

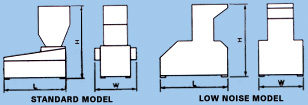

Thermoforming Grinder
Standard Grinders Model Nos.
Machine Size (L*W*H) in mm
Low Noise Grinders Model Nos. in mm
Machine Size (L*W*H) in mm
Feed Opening in mm
Motor (HP) Kgs/hr
For Sheets up to width (in mm)
*Output upto Kgs/hr
Screen Size Holes in mm
GI-480/S/TS/7.5
1500*925*1650
GI-480/LN/TS/7.5
1650*1100*1700
480
7.5
470
60-80
9
GI-540/S/TS/10
1550*1100*1800
GI-540/LN/TS/10
1700*1250*1850
540
10
530
100-150
9
We can also offer grinders to grind smaller/bigger
width sheets and with more output as per your requirement.
*Average output is given, it depends on type of materials, screen
holes size & specific conditions.

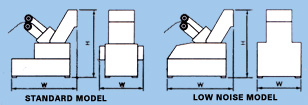

Autofeed Roll Thermoforming Sheet
Scrap Grinders
Standard Grinders Model Nos.
Machine Size (L*W*H) in mm
Low Noise Grinders Model Nos. in mm
Machine Size (L*W*H) in mm
Feed Opening in mm
Motor (HP) Kgs/hr
For Sheets up to width (in mm)
*Output upto Kgs/hr
Screen Size Holes in mm
GI-480/S/AF/TS/7.5
1775*1000*1750
GI-480/LN/AF/TS/7.5
1925*1150*1750
480
7.5
470
120
9
GI-540/S/AF/TS/10
2050*1120*1870
GI-540/LN/AF/TS/10
2200*1270*1900
540
10
530
200
9
The AF series assures efficient operation via a
feed roll assembly that continously feeds the sheet material into
the cutting chamber and ensures highly efficient delivery of materials
to the cutting chamber with a minimum of jams, back-ups and other
problem that can reduce the output. We can also offer grinders for
smaller/bigger width sheets and with more output as per your requirement.
*Average output is given, it depends on type of materials, screen
holes size & specific conditions.
